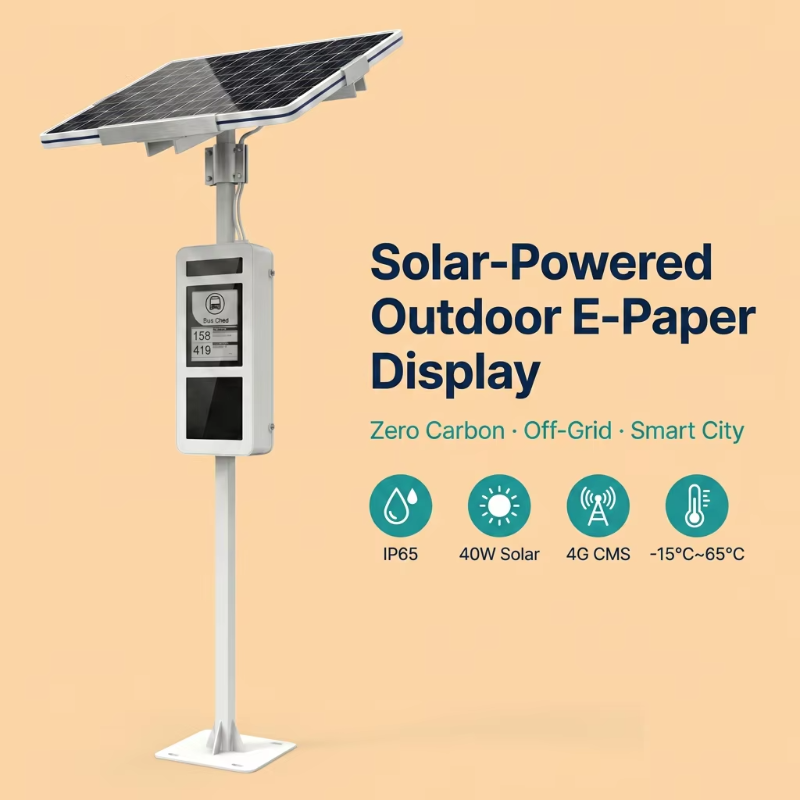

Solar Powered Outdoor E-Paper Display

Solar Powered Outdoor E-Paper Display

The Solar Powered E-Paper Display is a sustainable and maintenance-efficient outdoor signage solution designed for smart cities, public transportation, campuses, parks, and community information networks. Powered entirely by solar energy, the system operates independently without external wiring or grid power, significantly reducing installation costs and long-term operating expenses.

Equipped with a high-visibility E-Paper screen, the display remains clearly readable even under direct sunlight while consuming only a fraction of the energy required by conventional LCD displays. The integrated solar panel and rechargeable battery provide reliable year-round operation, making it ideal for remote and off-grid installations.

With built-in 4G connectivity and cloud-based content management, operators can remotely update schedules, announcements, maps, wayfinding information, public notices, and emergency alerts from anywhere. The rugged IP65-rated enclosure and IK08 impact-resistant design ensure stable performance in demanding outdoor environments.

  • Resolution QHD 2560×1440, 300 PPI
  • Solar Panel 40W Monocrystalline, MPPT Charging Controller Included
  • Battery 54Wh LiFePO4; 15–20 Days Off-Grid Standby
  • Operating System Android 14, Quad-core 2.4GHz, 2GB RAM + 32GB ROM
  • Protection Rating IP65 Dustproof & Waterproof; IK08 Vandal-Resistant
  • OEM / ODM Service Custom Logo, Housing Color, Boot Screen, CMS UI;
Contact us
05
Forget expensive trenching, monthly electricity bills, and complicated wiring permits. The solar e-paper display runs entirely on sunlight, consumes near-zero power when static, and updates content remotely via 4G cloud — making it the only outdoor signage solution that pays for itself over time. Engineered for smart cities, transit authorities, and campus operators who demand reliability without infrastructure overhead. Deploy anywhere. Maintain nothing. Display everything.
Send Inquiry Now
05

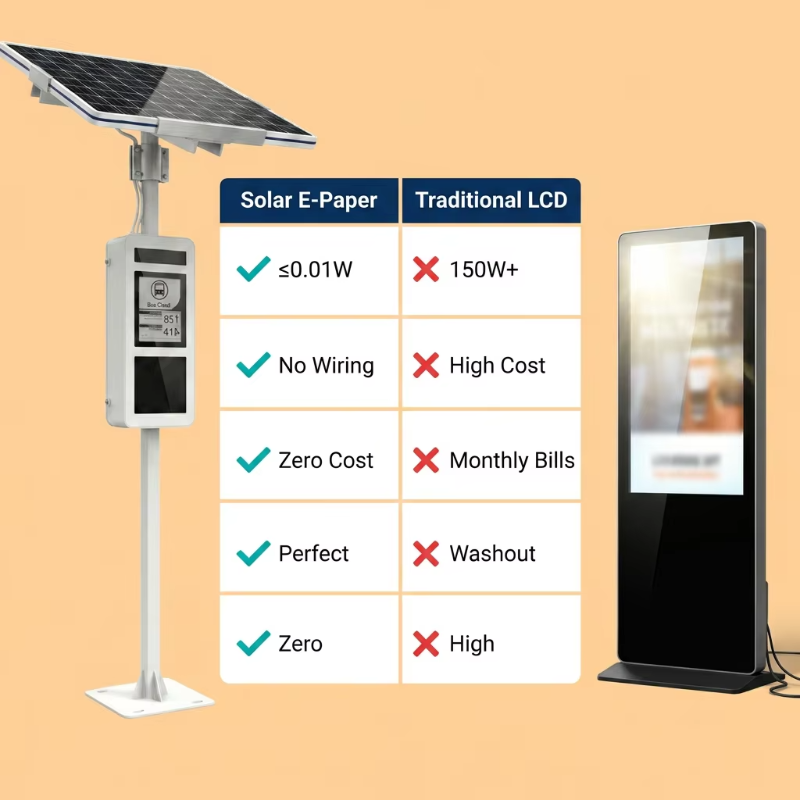

Traditional LCD signage draws 150W+ continuously, requires grid connection, and washes out completely under direct sunlight — the exact conditions where outdoor displays are needed most. The flips this logic: static power consumption drops to just 0.01W, solar charging eliminates wiring costs entirely, and the e-paper surface becomes sharper as sunlight increases. Over a 5-year lifecycle, operators report up to 90% lower total cost of ownership compared to equivalent LCD installations.
Send Inquiry Now
02

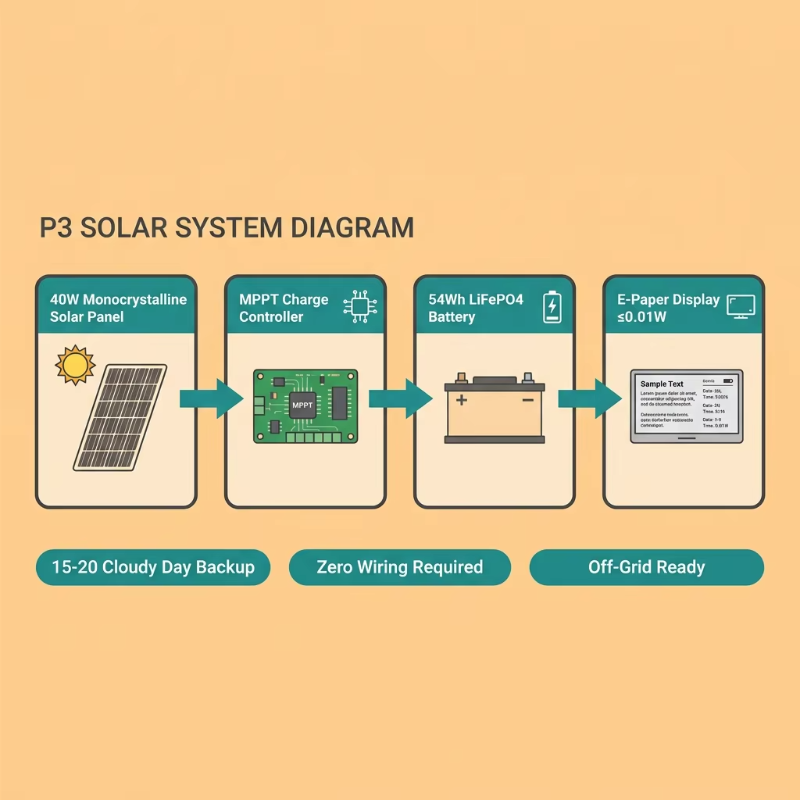

The integrates a complete off-grid energy system into a single pole-mounted unit. A 40W monocrystalline panel feeds an MPPT charge controller that maximizes harvest across variable light conditions, storing energy in a 54Wh lithium iron phosphate battery — the same chemistry used in grid-scale storage for its cycle life and thermal stability. Even during extended overcast periods of 15-20 consecutive days, the system maintains full operation without any supplemental power source. No generator. No extension cord. No compromise.
Send Inquiry Now
12

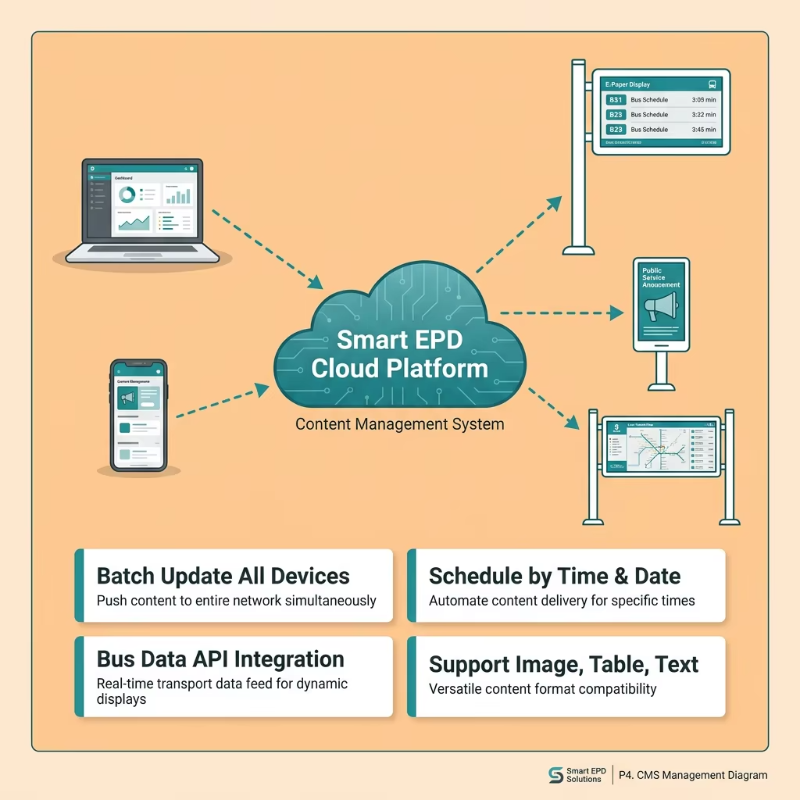

Content management requires zero on-site visits. Through the Smart EPD cloud platform, operators schedule updates by time slot, push emergency notices to all units simultaneously, and integrate real-time data feeds — including transit APIs, weather services, and event calendars — directly into displayed content. Role-based access control allows municipal departments, transit operators, and facility managers to manage their own zones independently. Full audit logs record every content change with timestamp and operator ID for compliance reporting.
Send Inquiry Now
04

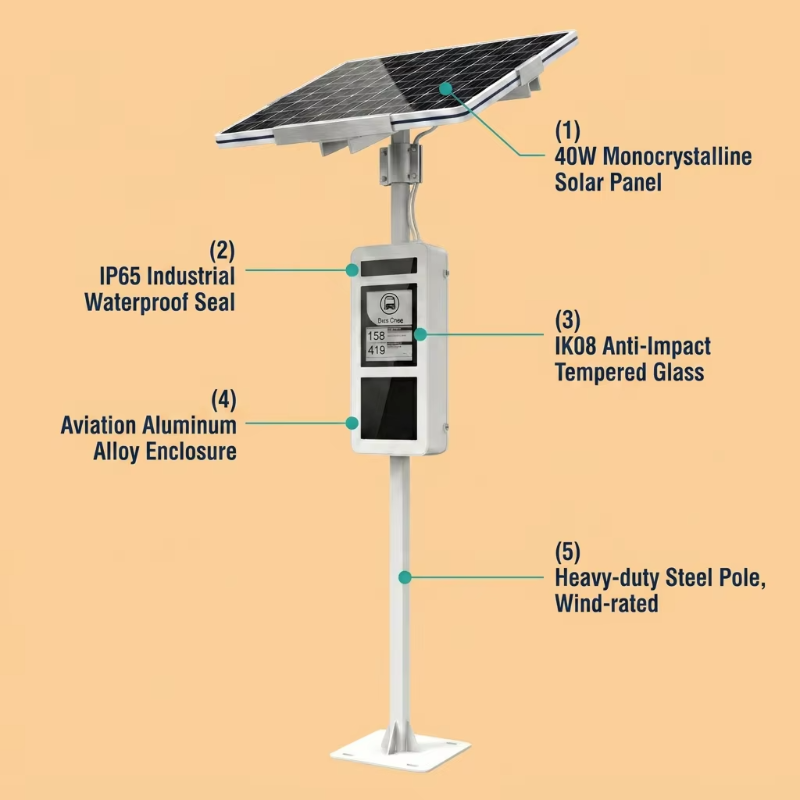

Every structural decision in the reflects deployment in uncontrolled outdoor environments. The aviation-grade aluminum enclosure resists corrosion and dissipates heat without active cooling. Industrial-grade waterproof seals around every port and panel joint maintain IP65 integrity even after years of thermal cycling. The IK08-rated tempered glass front panel withstands deliberate impact — a critical requirement for public-facing installations in high-traffic areas. The powder-coated steel pole is pre-drilled for standard VESA mounting and concrete anchor bolt patterns.
Send Inquiry Now
04

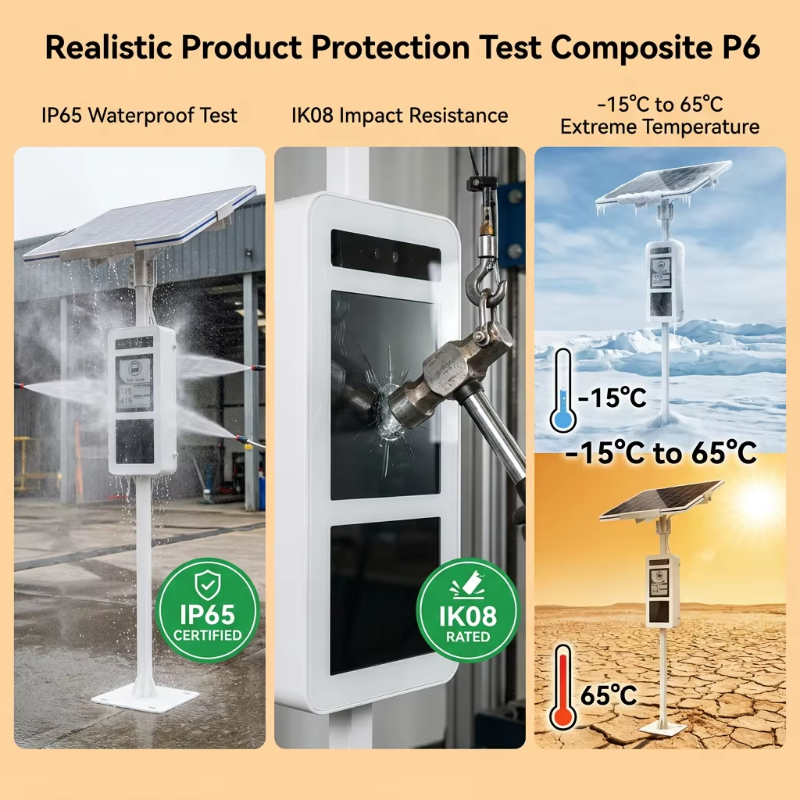

Certification claims are only meaningful when backed by documented test results. The achieves IP65 rating through sustained high-pressure water jet exposure across all seam surfaces — not just splash resistance. IK08 certification confirms the front glass withstands 5-joule impact forces, equivalent to a 500g weight dropped from one meter. Operational stability across -15°C to 65°C is validated through thermal chamber cycling, ensuring consistent display refresh performance in both Nordic winters and Middle Eastern summers without firmware intervention.
Send Inquiry Now
04

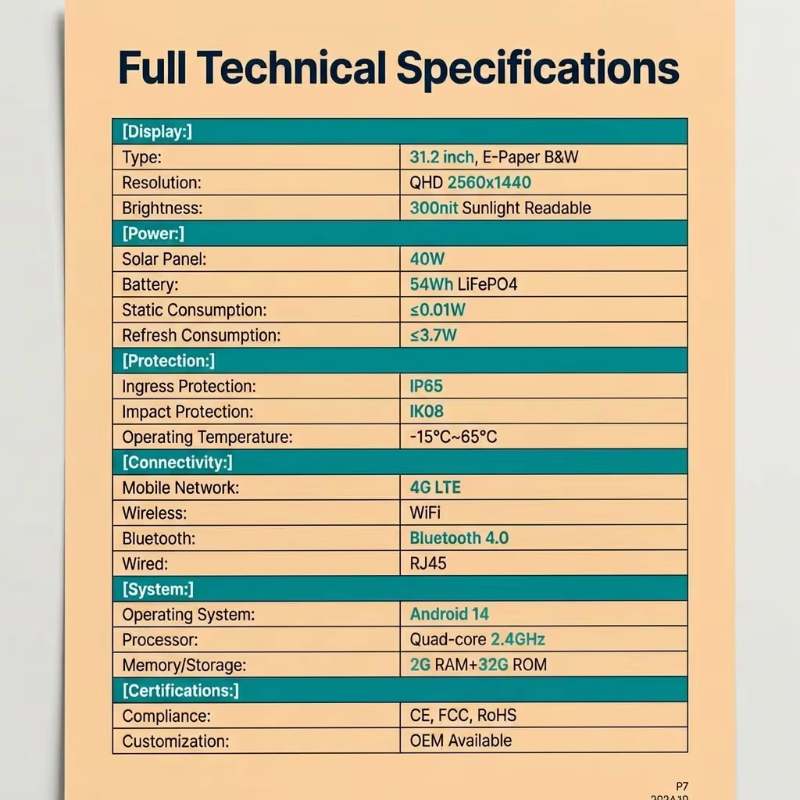

Procurement teams require verifiable specs for compatibility assessments and budget sign-off. The runs Android 14 on a quad-core 2.4GHz processor with 2G RAM and 32G ROM — delivering smooth CMS operation, OTA updates, and concurrent API data feeds without lag. Display resolution is QHD 2560×1440 on a 31.2-inch e-paper panel. All connectivity is factory-installed: 4G LTE, WiFi, Bluetooth 4.0, and RJ45. CE, FCC, and RoHS certifications cover Europe, North America, and Asia-Pacific.
Send Inquiry Now
04

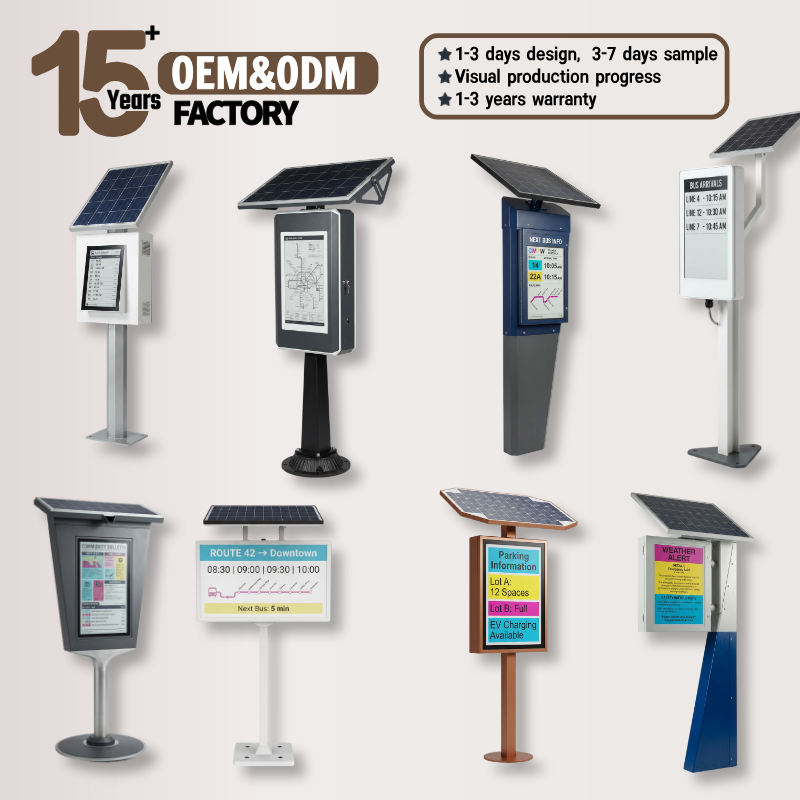

Municipal tenders, transit authority contracts, and smart city frameworks frequently require vendor branding, custom enclosure colors, or proprietary CMS integration that off-the-shelf products cannot accommodate. The is available for full OEM and ODM customization from MOQ 10 units, including RAL-matched housing finishes, laser-engraved or adhesive logo application, screen size variants from 10 to 43 inches, and white-label CMS software with custom domain and branding. Lead time from approved specification to shipping is 15-25 business days.
Send Inquiry Now

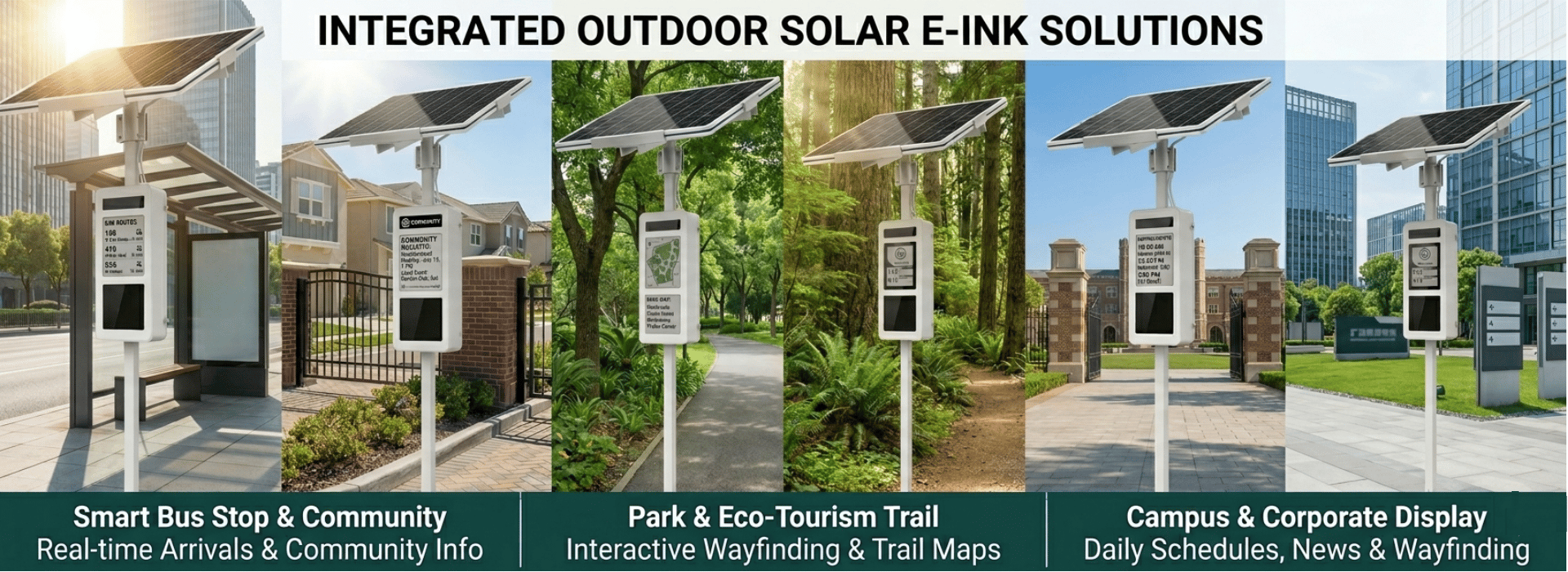

Application Scenarios

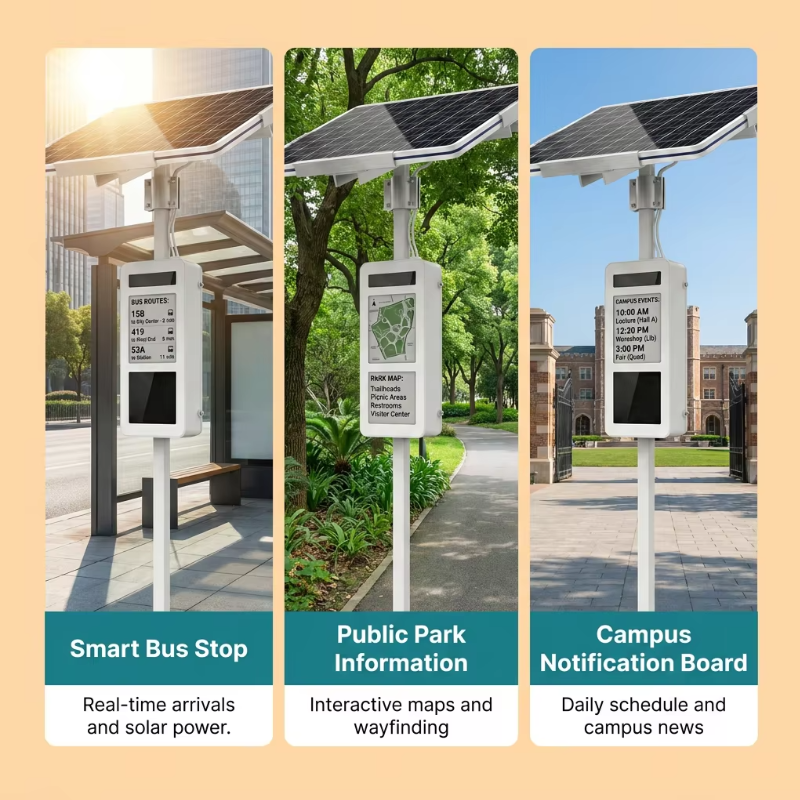

Smart Bus Stops & Public Transit Information

The 31.2-inch Solar-Powered E-Paper Display is designed for modern public transportation systems, delivering real-time route schedules, arrival information, service announcements, and emergency notices without requiring grid power. Its ultra-low power consumption and solar-powered operation make it ideal for remote bus stops, rural transit stations, and sustainable urban transportation projects.

Smart City Information Networks

Municipalities and smart city operators can deploy the display as a digital information terminal for public announcements, city events, environmental updates, traffic alerts, and community services. The anti-glare E-paper technology ensures excellent readability under direct sunlight while minimizing energy consumption and maintenance costs.

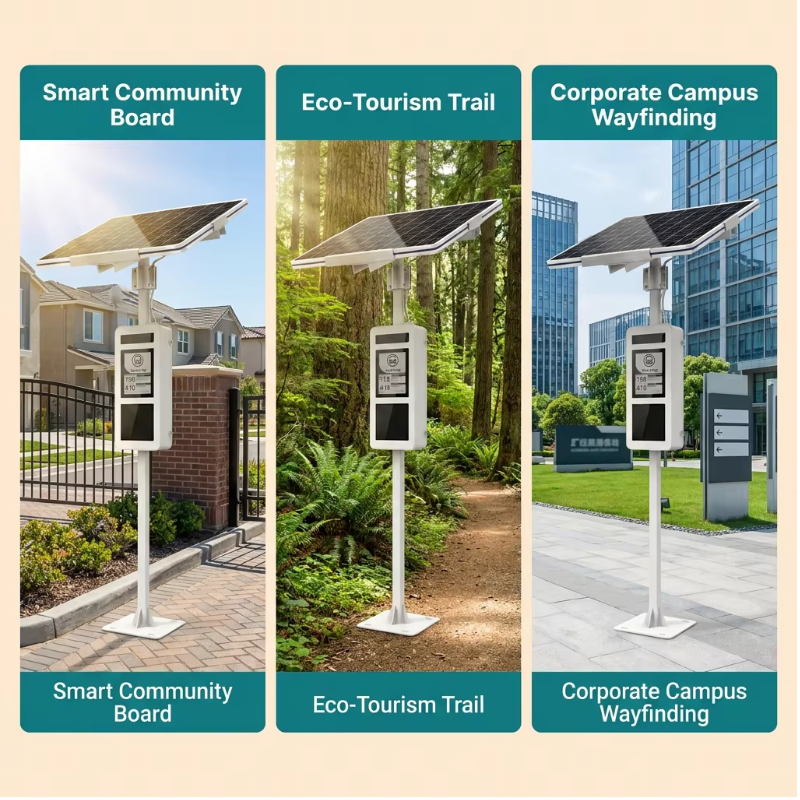

Parks, Campuses & Public Spaces

Perfect for parks, universities, industrial campuses, and recreational areas, the display can provide wayfinding maps, visitor information, safety instructions, and event schedules. The solar-powered design eliminates complex wiring and enables flexible installation in outdoor locations.

Tourist Attractions & Cultural Sites

At museums, historical landmarks, and tourist destinations, the display can present multilingual visitor information, maps, opening hours, and local recommendations. The paper-like viewing experience enhances readability and blends naturally into outdoor environments.

Parking Lots & Transportation Hubs

Suitable for parking guidance systems, EV charging stations, train stations, and logistics centers, the display can deliver occupancy information, navigation instructions, operational notices, and dynamic updates through remote cloud management.

Off-Grid & Sustainable Infrastructure Projects

With IP65 weather protection, IK08 impact resistance, integrated solar power, and 4G cloud connectivity, the solution is particularly valuable for off-grid deployments where conventional power infrastructure is unavailable or costly to install. It helps organizations achieve sustainability goals while reducing operational expenses.
03
2(1)

Why Choose BEST?

1.We are a vertically integrated manufacturer maintaining end-to-end control over design, R&D, production, and testing, ensuring stringent quality management and cost efficiency.
2.Custom OEM/ODM solutions produce drawings within 48 hours and functional prototypes within 7 days, scaling from trial to mass production.
3.A 12-step inspection and 72-hour aging process maintains product defect rates below 0.05%.
4.Environmental testing includes waterproof, thermal, vibration, shock, salt spray, and UV exposure validation.
5.Products are FCC, CE, and RoHS certified for international markets.
6.English-speaking engineers offer 24/7 technical support, remote calibration, and firmware upgrades.
7.Dedicated technical managers and ongoing training maintain long-term operational efficiency for partners.
