Off-Grid Digital Signage | 420W Solar · 48H Battery · IP55
SOLAR OUTDOOR DIGITAL SIGNAGE (2).jpg
SOLAR OUTDOOR DIGITAL SIGNAGE (12).jpg

Off-Grid Digital Signage | 420W Solar · 48H Battery · IP55

☀ ZERO INFRASTRUCTURE. ZERO ONGOING COST.
Traditional outdoor displays require electrical trenching ($2,000–
$15,000 per site), permits, and recurring electricity bills. Our solar
display eliminates all three — resulting in 40–60% lower total cost
of ownership over five years.

🔋 48-HOUR BATTERY. ALL-WEATHER GUARANTEED.
LiFePO4 chemistry delivers 2,000+ charge cycles with zero thermal
runaway risk. Screens keep running through nights, overcast days, and
rainy periods without interruption.

🌞 1800NITS. READABLE IN ANY SUNLIGHT.
At 3.6× the brightness of standard outdoor panels, combined with AR
anti-glare glass (reflectance <1%), your content commands attention
from 10+ meters under peak midday sun.

🌍 ONE SKU. EVERY CLIMATE.
IP55 protection. -35°C to +85°C operating range. 500-hour salt spray
tested. One product line covers North America, Europe, the Middle East,
and Southeast Asia simultaneously.

  • Battery Type & Capacity LiFePO4; 2400W(32")/2880W(43")/3600W(55"); 2000+ Cycles
  • Battery Runtime 48+ Hours Continuous; Full Charge via 6–8 Sunny Hours
  • Solar Panel 420W 24V Monocrystalline, 15–22% Efficiency
  • Glass Specification 6mm AR Anti-Glare Tempered Safety Glass; Reflectance <1%
  • Target Application Scenarios Gas Station / Parking / EV Charging / Plaza / Roadside / Tourism
  • OEM / ODM Service Custom Logo, Housing Color, Boot Screen, CMS UI;
Contact us
12
Standard outdoor displays wash out in direct sunlight at 500nits. This display delivers 1800nits peak luminance — 3.6× brighter — combined with 6mm AR anti-glare tempered glass that reduces surface reflectance below 1%. The result: vivid, contrast-rich content fully readable at 10+ meters under peak midday sun. A built-in ambient light sensor auto-adjusts brightness from 300nits (night) to 1800nits (peak), saving 35% energy versus fixed-brightness alternatives.
Send Inquiry Now
06

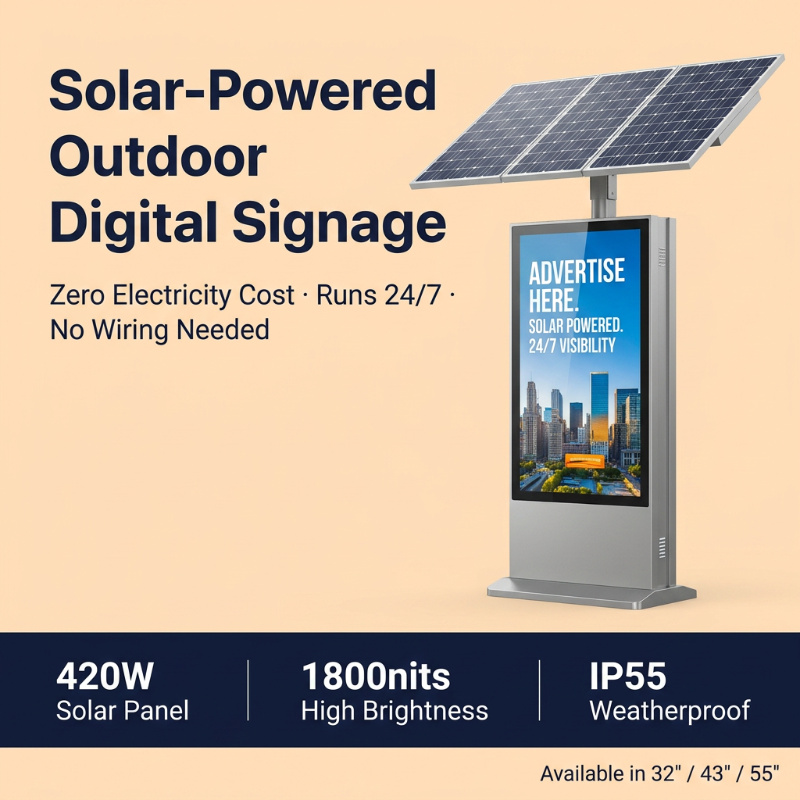

Engineered for the world beyond the power grid. This solar outdoor advertising display combines a 420W monocrystalline solar panel, LiFePO4 battery bank, and 1800nits high-brightness LCD into one freestanding unit. Deploy at gas stations, EV charging plazas, roadsides, and tourist destinations — no wiring, no electrician, no electricity cost. Available in 32", 43", and 55" portrait configurations.
Send Inquiry Now
05
Four engineering advantages that set this solar display apart: 1800nits sunlight-readable brightness eliminates screen washout; IP55 protection withstands rain, dust, and sand across -35°C to +85°C; LiFePO4 battery delivers 48+ hours of continuous playback on a single solar charge; Android 11 with 4G/WiFi enables real-time cloud content management from anywhere. One unit. Four competitive edges.
Send Inquiry Now
04
Built for the harshest outdoor environments on earth. IP55-rated enclosure with hot-dip galvanized steel cabinet, silicone gasket sealing, and UV-resistant powder coat finish. Validated across coastal salt air (500h+ salt spray tested), desert sandstorms, monsoon rainfall, and sub-zero frost. Operating temperature range: -35°C to +85°C — covering Scandinavian winters and Saudi Arabian summers in one SKU. Structural integrity guaranteed for 15+ years of continuous outdoor exposure.
Send Inquiry Now
02

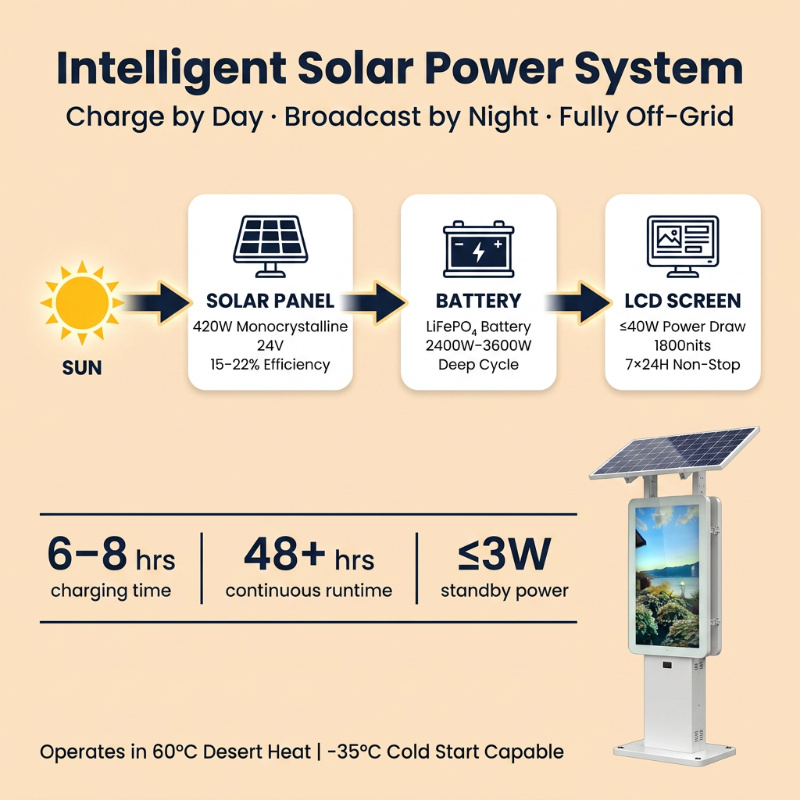

A complete off-grid power ecosystem integrated into one unit. The 420W, 24V monocrystalline solar panel (15–22% conversion efficiency) feeds an MPPT charge controller, which intelligently manages energy flow to the LiFePO4 battery bank. Battery capacity scales with display size: 2400Wh (32"), 2880Wh (43"), 3600Wh (55"). Full charge in 6–8 sunny hours. 48+ hours runtime with zero solar input. Zero grid dependency.
Send Inquiry Now
04

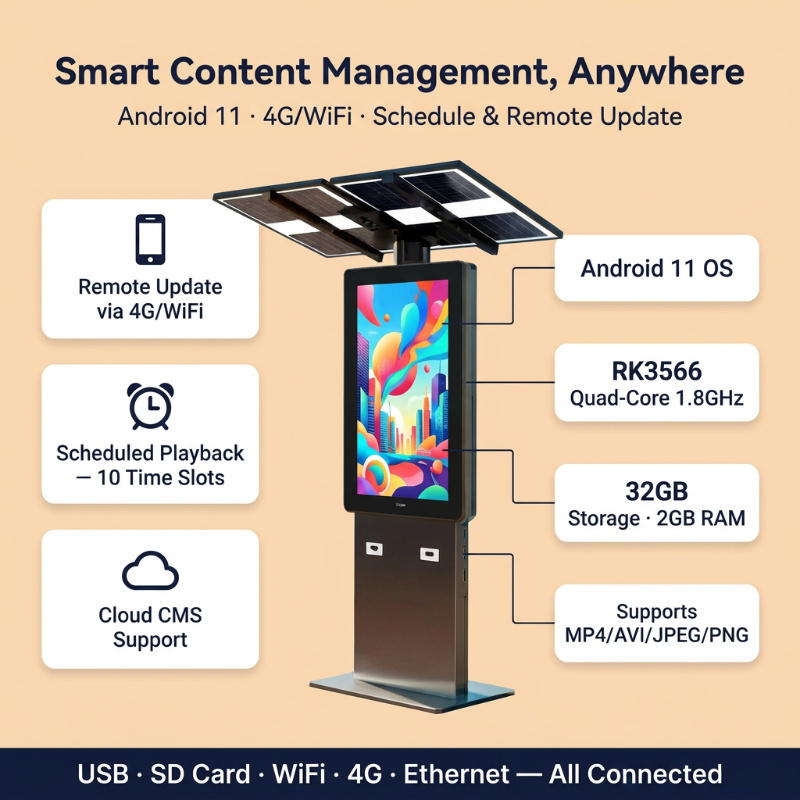

Manage your entire display network from any device, anywhere. Android 11 OS with RK3566 quad-core 1.8GHz processor supports cloud CMS via WiFi, 4G LTE, or Ethernet — with automatic failover between networks. Push content updates in under 30 seconds. Schedule up to 10 independent daily time slots for targeted campaign delivery. Compatible with MP4, AVI, JPEG, PNG, and HTML5. Third-party CMS integration supported. Manage one unit or hundreds from a single dashboard.
Send Inquiry Now
04

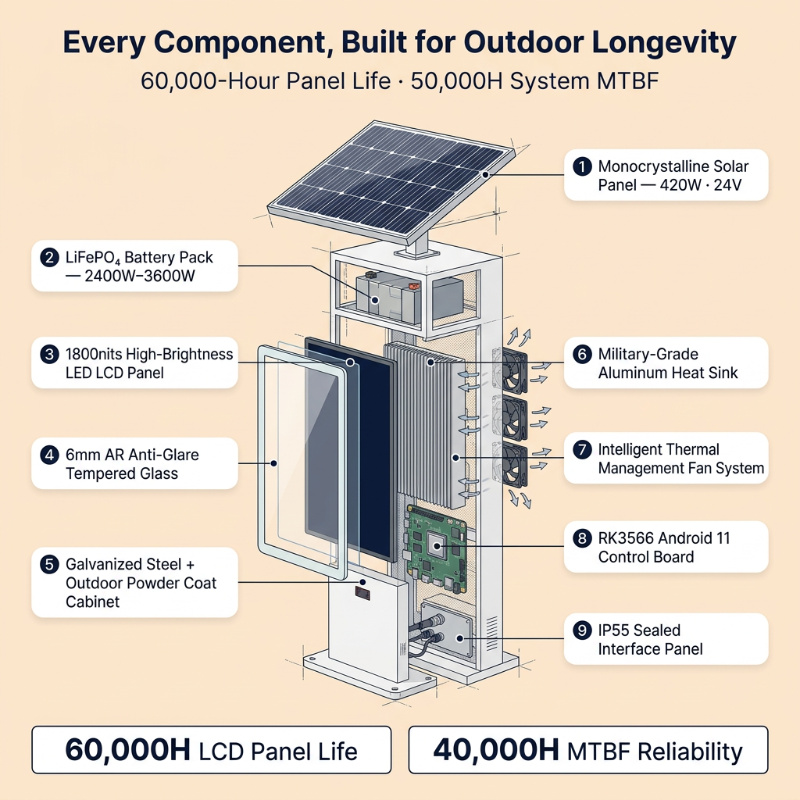

Every component engineered for outdoor longevity. 420W monocrystalline solar panel with 25-year output warranty. LiFePO4 battery module with 2000+ cycle rating and zero thermal runaway risk. Industrial TFT-LCD panel: 60,000-hour rated life, 178° viewing angle. RK3566 Android 11 main control board with triple-network connectivity. 6mm AR tempered glass front panel. Hot-dip galvanized steel enclosure with military-grade aluminum heat dissipation. Every part built to last.
Send Inquiry Now
04
Global compliance. Local confidence. CE (LVD+EMC), FCC Part 15, UL 60950, 3C, RoHS 2.0, and ISO9001 certifications cover EU, USA, and international markets simultaneously. Full test reports and declarations of conformity provided with every order. 2-year comprehensive warranty on all components. Remote diagnosis resolves 80% of issues without site visits. OEM/ODM service from MOQ 5 units. Spare parts dispatched within 72 hours. Factory audit welcomed — documentation ready on request.
Send Inquiry Now

Application Scenarios

Six high-value deployment environments where grid power is unavailable, restricted, or cost-prohibitive: gas station forecourts (fire zone compliance), parking entrances (dynamic pricing display), shopping plaza promotions (seasonal relocation), highway roadsides (zero electricity cost), tourist attraction entrances (remote scenic areas), and EV charging plazas (monetizing 30–60 minute dwell time). One solar display platform, six revenue-generating deployment scenarios.
03
2(1)

Why Choose BEST?

1.We are a vertically integrated manufacturer maintaining end-to-end control over design, R&D, production, and testing, ensuring stringent quality management and cost efficiency.

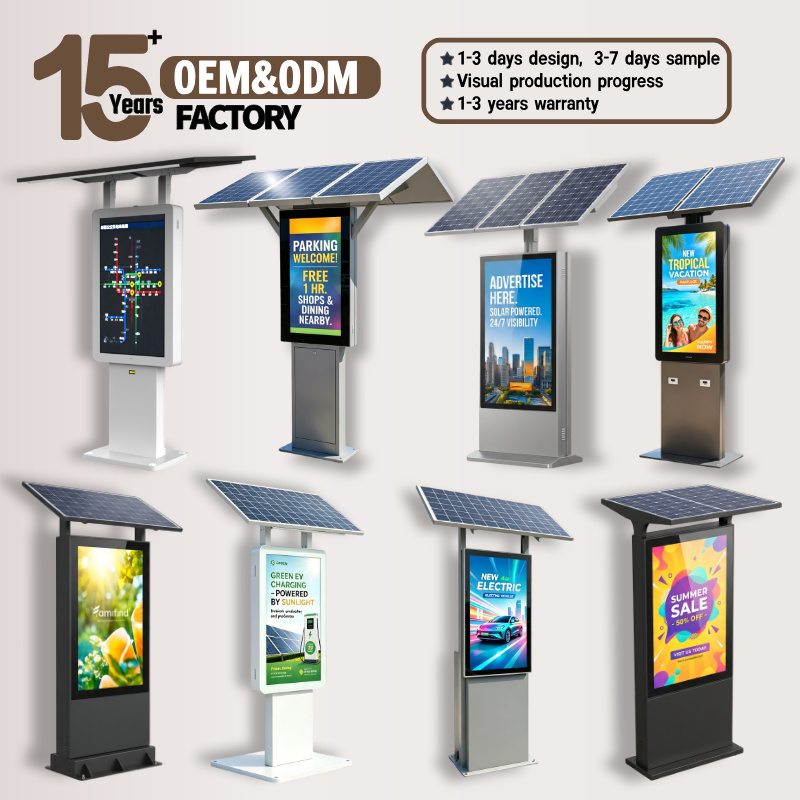

2.Custom OEM/ODM solutions produce drawings within 48 hours and functional prototypes within 7 days, scaling from trial to mass production.
3.A 12-step inspection and 72-hour aging process maintains product defect rates below 0.05%.
4.Environmental testing includes waterproof, thermal, vibration, shock, salt spray, and UV exposure validation.
5.Products are FCC, CE, and RoHS certified for international markets.
6.English-speaking engineers offer 24/7 technical support, remote calibration, and firmware upgrades.
7.Dedicated technical managers and ongoing training maintain long-term operational efficiency for partners.
